Venture 27.5″ Electric Mountain Bike 14Ah


Price includes VAT and Delivery*

EAN: N/A SKU: EB-VENTURE-II Category: Tags: , , ,

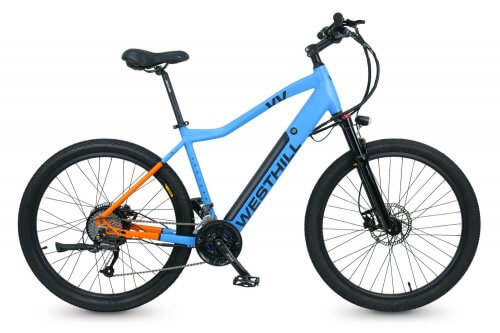

Venture 27.5″ Electric Mountain Bike

  • Shimano Altus M2010 9 x 3 Rapidfire gears
  • Tektro hydraulic disc brakes
  • Mozo Summit Air Fork with Lockout 120mm
  • Integrated removable battery 14Ah (Samsung cells) 36V
  • Large full colour display
  • Ultra-High torque Bafang hub motor (45Nm)
  • Selle Royal gel saddle
  • Integrated front light
  • Throttle compatible
  • Alloy front hub with quick release
  • Lightweight electric bike
  • Kickstand

The Westhill Venture electric mountain bike is equipped for anything you want to throw it at. The fast rolling 27.5″ wheels are shod with Kenda 160TPI puncture resistant high volume 2.35″ tyres that are equally sure-footed in the woods as they are out on the road.

The Venture’s 36V 14AH (504WH) Samsung cell lithium ion battery with smart BMS, combined with a super powerful, high speed, high torque 45NM Bafang hub motor means you’ll have the power to tackle any terrain, any mountain and any street with up to 60 miles of range for those epic days in the saddle. The Venture’s large full-colour KD986 intelligent LCD display provides all the info you’ll need and the Venture’s system is fully programmable via the display’s easy-to-use interface.

When the trail gets rough, suspension is taken care of by an impressive Mozo Summit air fork with 120mm of travel, full lockout and damping adjustment, meaning that bumps are smoothed out effortlessly and confidently and the ride of the Venture is buttery smooth.

Tektro HD-E500 hydraulic disc brakes front and rear give the Westhill Venture super-impressive and well-modulated stopping power. 27 speed Shimano Altus shifters and gears means you can effortlessly ride the Westhill Venture up and over whatever the trail may throw at you.

The clever integrated battery, integrated cable design of the Venture’s 6061 lightweight aluminium frame makes this one of the best looking electric mountain bikes available anywhere. Combined with well thought out and high quality finishing kit from Zoom and Selle Royal, the Westhill Venture offers incredible value for money for a well-equipped, well-balanced, great looking and great riding electric mountain bike.

Ride Free with the Westhill Venture!

Free delivery to UK Mainland only. Delivery to N.Ireland, Channel Isles and Scottish Highlands incurs an additional charge. See Terms and Conditions for more details.



ColourBlack/yellow or Blue/Orange
Frame Material 6061 lightweight aluminium with internal cables and integrated battery
Frame size 18"
ForkMozo Summit Air Fork with Lock out 120mm travel
MotorBafang Rear Hub Motor
Motor Torque45Nm High Speed Motor
Battery14Ah Samsung Cell battery
Battery ManagementSmart BMS with sleep model function
Charger2Ah smart charger, 4 hours charging from empty
DisplayLarge central Colour LCD display
Walk Assist4mph
RangeUp to 60 Miles 14Ah
ShiftersShimano Altus M2010 9 x 3 Rapidfire shifter
Rear MechanismShimano RD-M370 Altus 9 speed
ChainsetAlloy 24/34/42 Teeth with 170mm Alloy Crank arm
BBNeco B910 Sealed Cartridge
CassetteShimano CS-HG400 Alivio 9-speed cassette, 11-32T
ChainKMC 8 speed Anti Rust chain
Rims27.5 Alloy 36Hole Double wall
Front HubAlloy front hub with quick release
SpokesStainless and Brass Nipples 14G Front / 13G Rear
TyresKenda 27.5*2.35 TPI60 Puncture Resistant
Seat PostZoom Alloy Black
SaddleSelle Royal Comfort Sport saddle
HandlebarZoom Alloy 720mm 31.8 bar bore
GripsVelo all weather
StemZoom Alloy 90mm
HeadsetNeco semi-integrated with 2 spacers
Brake setTektro hydraulic disc brakes
Brake Rotors180mm front & 160mm rear
Kickstand Alloy
Front LightSpanninga integrated
